PRECISION WORKSHOP BAY 1-6 • REV 4.2 / 2026

Industrial Engineering &
Metal Fabrication Capabilities

Full-spectrum turnkey contract manufacturing: heavy structural framing, high-tonnage pressure vessels, automated PEB systems, and multi-axis CNC profile cutting adhering to AWS D1.1 and ASME Sec-VIII directives.

calculateLaunch Cost Estimator support_agentTalk to Chief Engineer
speed
1,850 MT
Monthly Plant Throughput
straighten
12,000 × 3,000 mm
Max Machining Bed
verified
±0.005"
Achievable Cut Tolerance

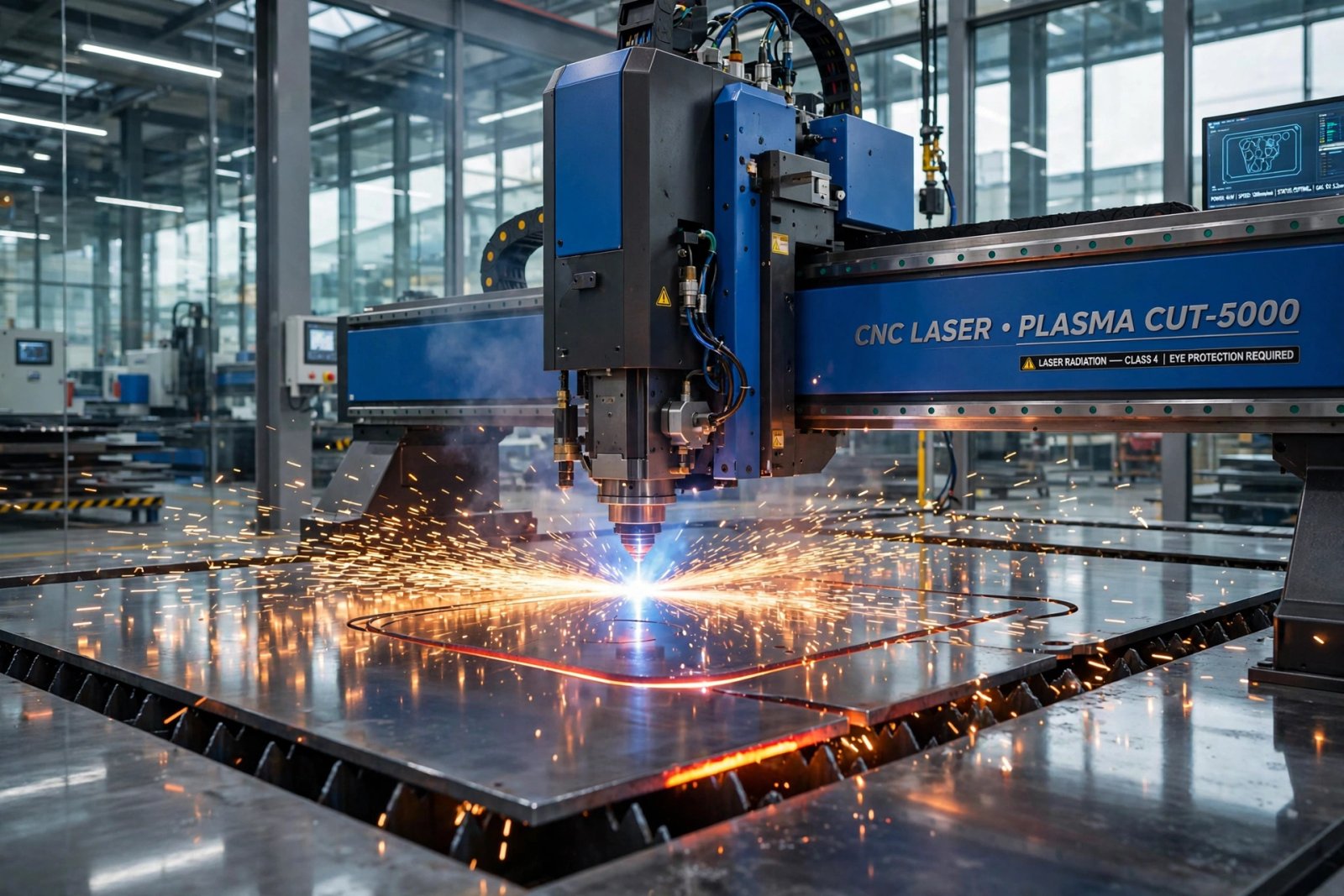

Active fabrication bay
LIVE SHOP FLOOR 15T CRANE GANTRIES
BAY 01 • HEAVY GIRDERS

Continuous SAW Welding Line

AWS D1.1 QUALIFIED STEEL
TATA STEEL LARSEN & TOUBRO BHEL SUPPLIERS JSW STEEL SAIL INDIA JINDAL STEEL ESAB WELDING LINCOLN ELECTRIC TATA STEEL LARSEN & TOUBRO BHEL SUPPLIERS JSW STEEL SAIL INDIA JINDAL STEEL ESAB WELDING LINCOLN ELECTRIC
Engineering Divisions

Core Production Processes & Workstations

Select any fabrication discipline below to inspect certified machinery specs, material grades, and non-destructive testing (NDT) workflows.

SELECT PROCESS 5 DIVISIONS ACTIVE
verified_user Quality Assurance Stamp

Every lot carries physical heat traceability stamps connecting raw mill certs to UT/MPI reports signed by Level-II inspectors.

ACCEPTANCE CRITERIA: AWS D1.1 / ASME IX
DIVISION ACTIVE

CNC Router Machine

speed 5-7 DAYS LEAD TIME
Fabrication cell

High precision, intricate carving, smooth finishing, automated operation, and customizable cutting patterns.

construction

Machinery & Equipment Specifications

Machinery
PRIMARY CUTTING / PROFILE

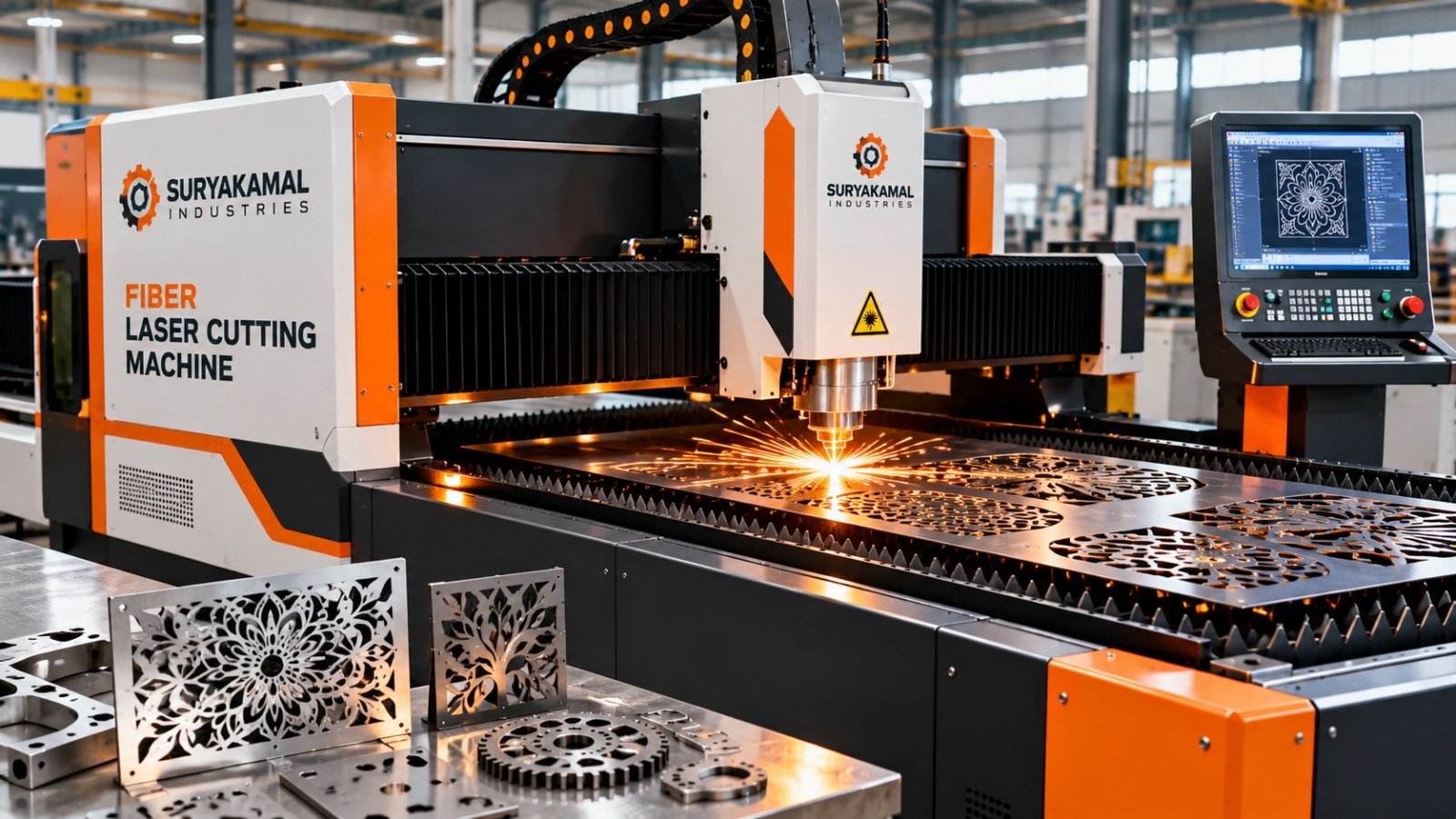

6kW CNC Fiber Laser Table

3,000 × 12,000 mm dual-shuttle bed with rotational pipe cutting chuck up to Ø450mm.

Machinery
FORMING & BENDING

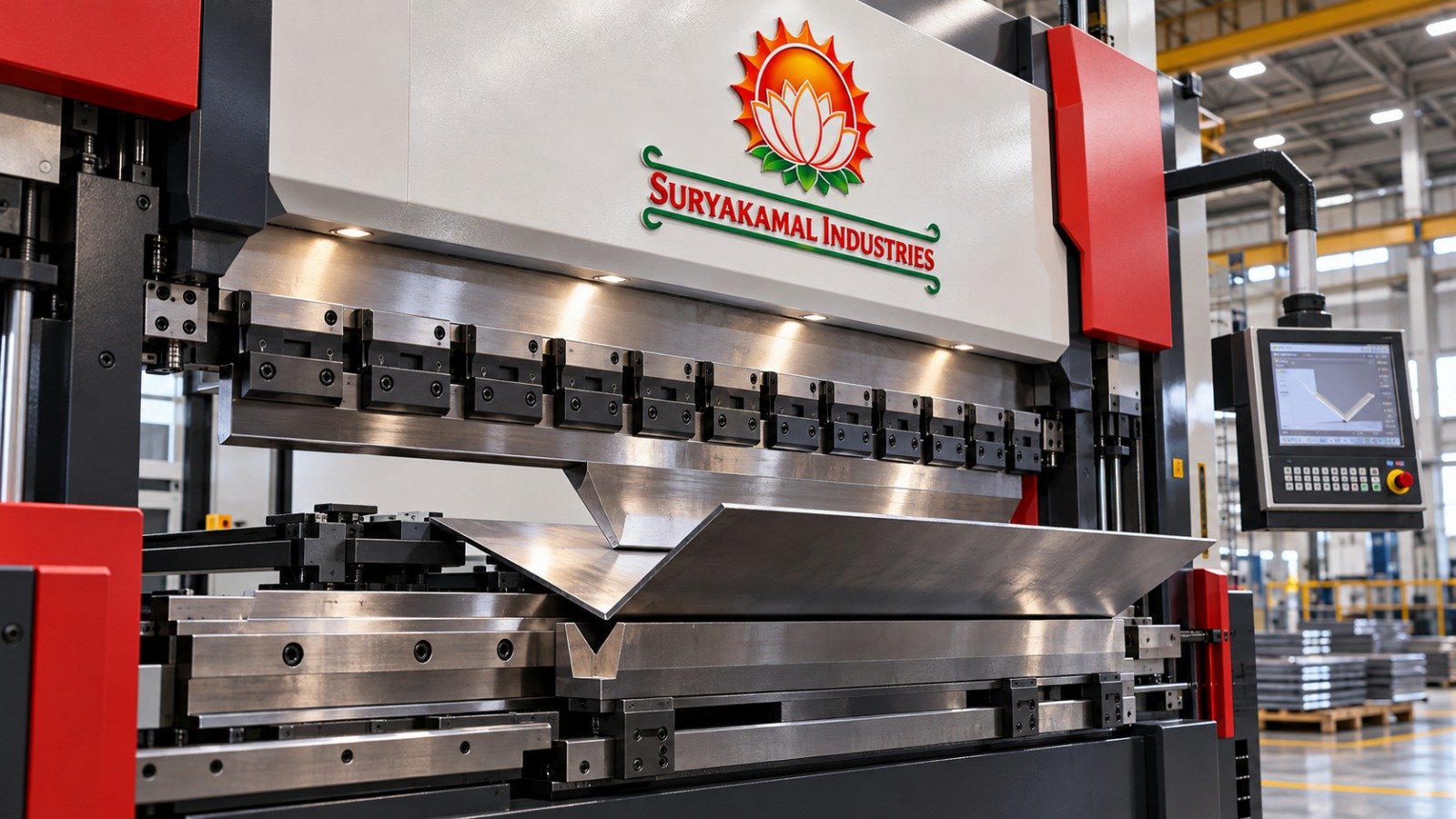

250T CNC Hydraulic Press

4,000 mm width multi-axis crowning control capable of 20mm plate folding with zero springback error.

Machinery
WELDING AUTOMATION

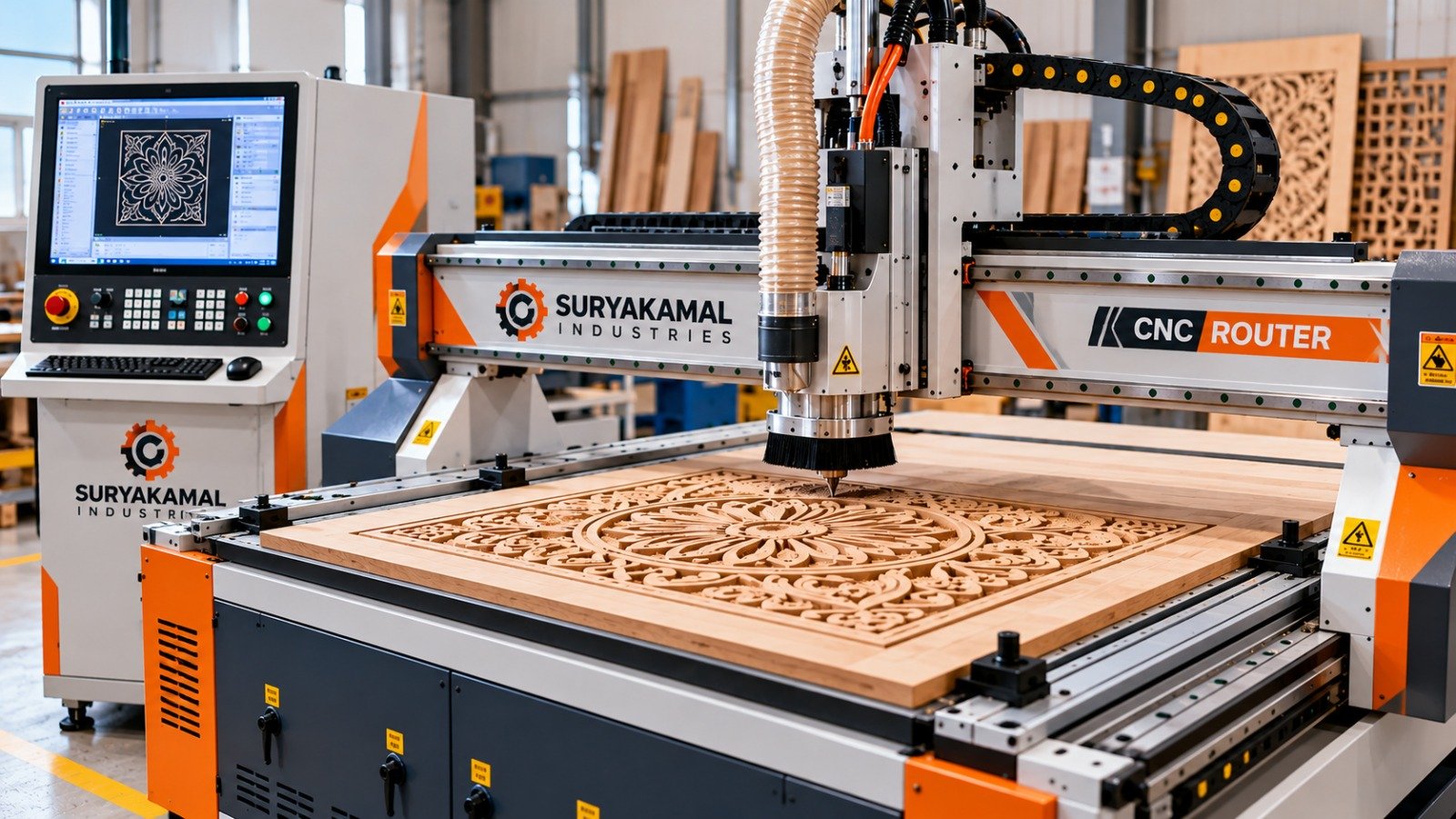

CNC Router Machine

Accurate cutting of woodworking, furniture manufacturing, decorative panels, signage, MDF boards, acrylic sheets, and interior design components.

layers

Certified Material Capabilities

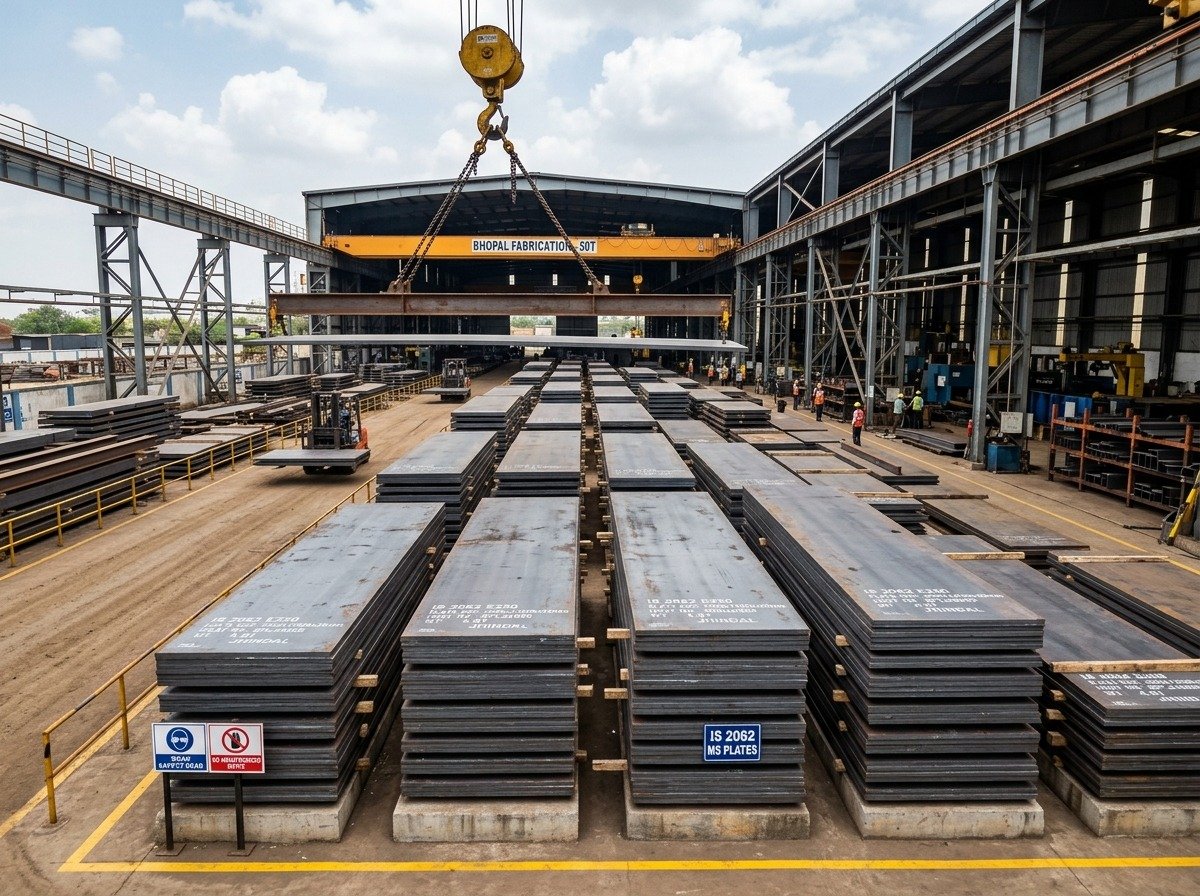

Mild Steel
Mild Steel IS 2062 Gr. E250 / E350 / E450

Structural steel grades for fabricated frames, supports, and plate components.

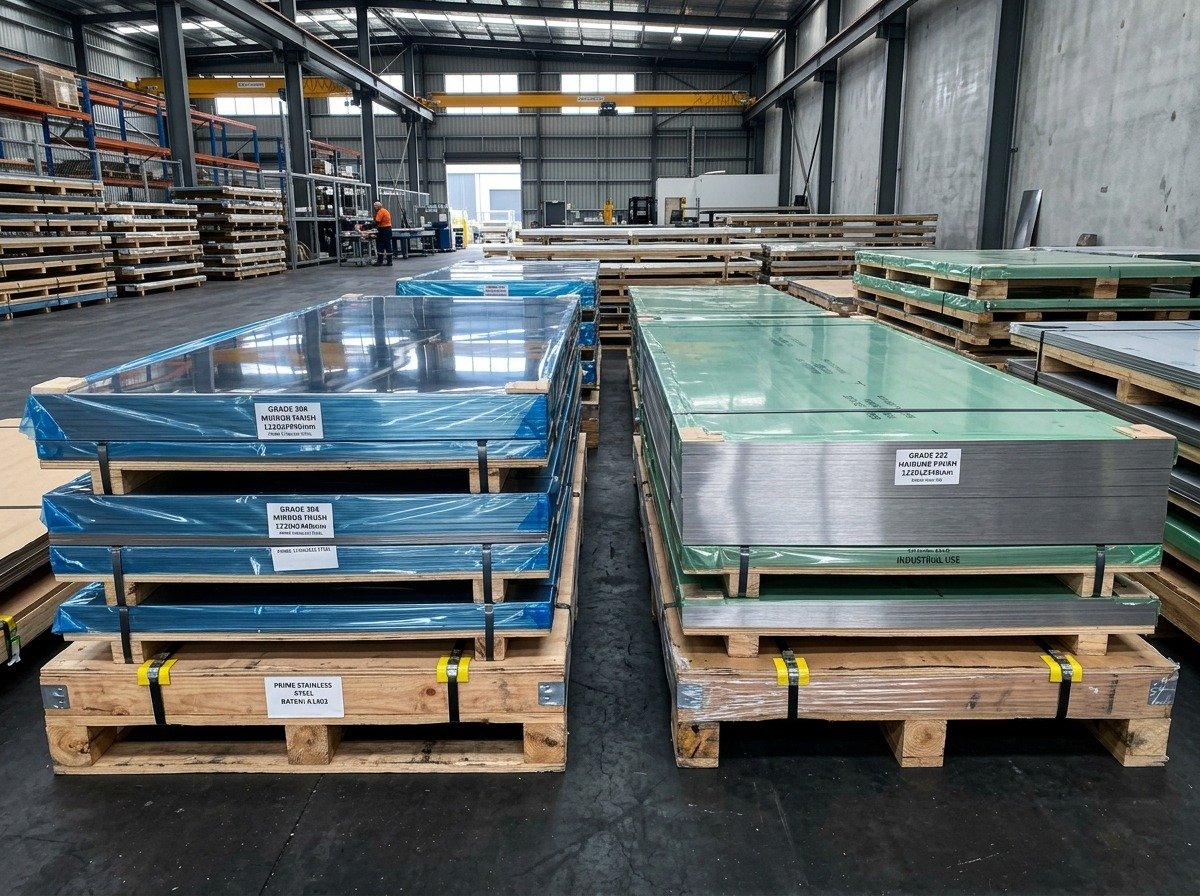

Stainless Steel
Stainless Steel SS 304, 304L, 316, 316L, 321

Passivated weld seams, food-grade/chemical finishing standards.

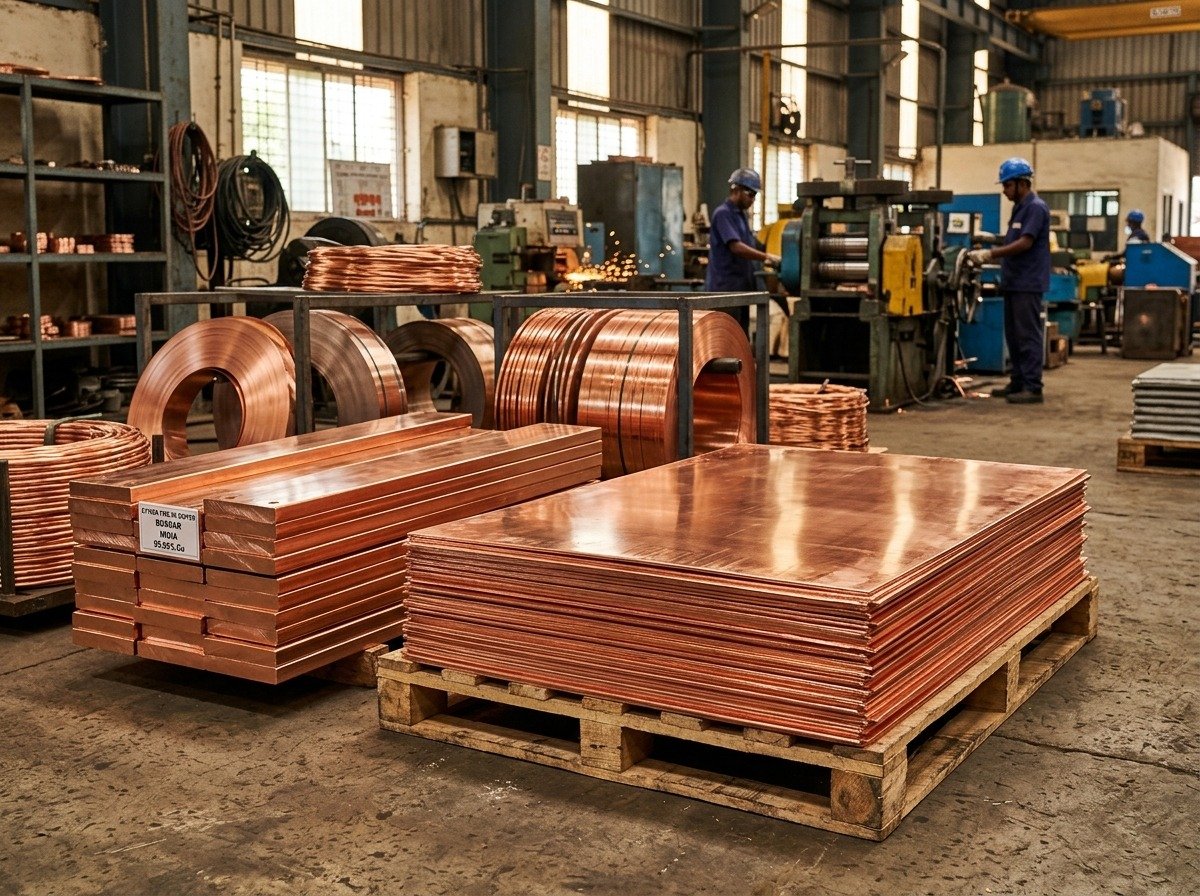

Copper
Copper Copper

Non-ferrous materials suited to electrical, decorative, and formed components.

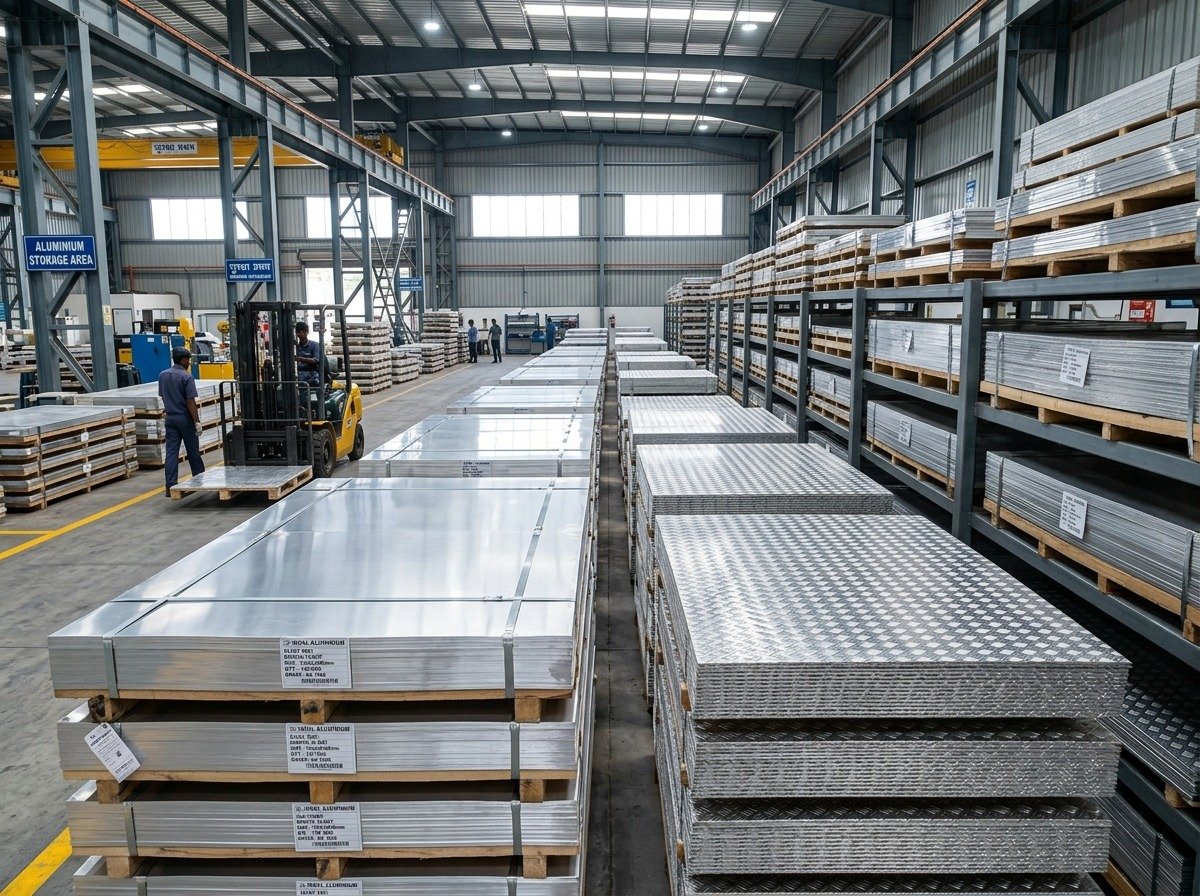

Aluminum
Aluminum 5052-H32, 5083, 6061-T6

Lightweight alloys for formed components and marine structures.

fact_check

Quality Assurance & NDT Matrix

100% IN-HOUSE LAB TESTING
Ultrasonic Testing graphic_eq
UT (ASTM A435 / A578)

Internal lamination & full penetration weld seam void detection.

Magnetic Particle grain
MPI (ASTM E709 / E1444)

Electromagnetic yoke detection of micro surface/sub-surface fractures.

Mill Certs (MTC) description
EN 10204 3.1 & 3.2

Direct chemical composition & Charpy V-notch mechanical traceability.

Hydrostatic Pressure water_drop
Up to 350 Bar Testing

Calibrated digital chart recorder hold tests with safety relief log.

sendSubmit RFQ for this Service
speed
99.2% On-Time Dispatch Rate over 240+ Delivered Projects
engineering
48+ Certified AWS 6G Welders & NDT Level-II Inspectors
shield
0.00% Weld Reject Ratio on External ASME Third-Party Audits
Measurable Precision

Tolerance & Machinery Comparison Matrix

MONTHLY CALIBRATION • ISO 9013-1 COMPLIANT
Manufacturing Process Machinery Asset Model Operational Bed / Span Max Material Gauge Achievable Tolerance Standard Spec Code
CNC Fiber Laser Cutting Hans Laser 12kW G4020 3,000 × 12,000 mm MS: 40mm | SS: 32mm ±0.05 mm ISO 9013-1
Heavy CNC Press Brake Ermaksan 400T × 4100 4,100 mm Width 25mm Plate Full Length ±0.25 mm / ±0.5° DIN 6930
Plate Rolling 4-Roll Davi MCA 3040 Hydraulic 3,100 mm Cylinder Shell 50mm Cold Roll ±1.0 mm Roundness D1
Submerged Arc Welding Lincoln Power Wave AC/DC 6m Boom × 40m Rail 80mm Fillet / Butt Joint Zero Porosity / 100% UT AWS D1.1
Grit Blasting & Painting Airblast Closed Enclosure 8m × 6m × 24m Chamber All Profiles DFT 50μm ± 5μm SSPC-SP 10 / NACE 2
